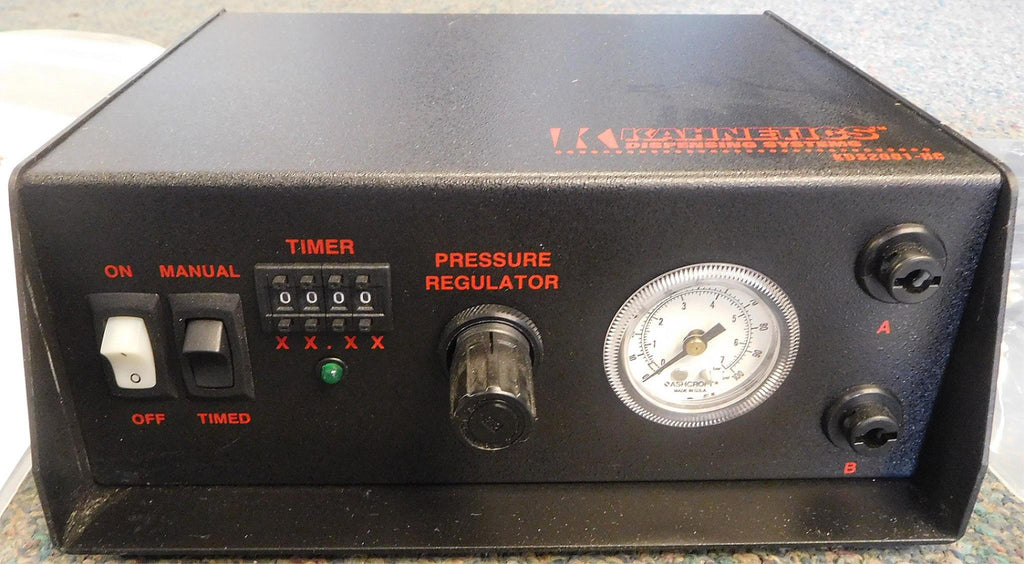

Functions as a controller for high pressure cyanoacrylate
valves
• Adjustable four position push button timer switch
• LED Indicator light
• 0 - 100 PSI regulators and gauges with locking ring
• Benchtop unit for easy reading of dials an adjustment of air
pressure and vacuum
• Low voltage unit for safety
• Slide switch easily changes unit from 115 to 230 volts
• Order syringe adapters, kits and other accessories separately
Input Voltage (Switchable) 115v 230v
Output Voltage 24v 24v
Air Input/Output 0-100 psi 0-6.9 Bar
Vacuum 0-18” Hg -0.61 Bar
Footprint 8.5”W x 6.5”D x 3.625”H 21.6cm x 16.5cm x 9.2cm
Weight 8 lb, 1 oz 12.4 kg
Timer Range .01 to 99.99 seconds
Repeat Accuracy .5 ms (.0005 sec.)
Recycle Time 12 ms (.012 sec.)
Setting Accuracy ± 2%
