Description

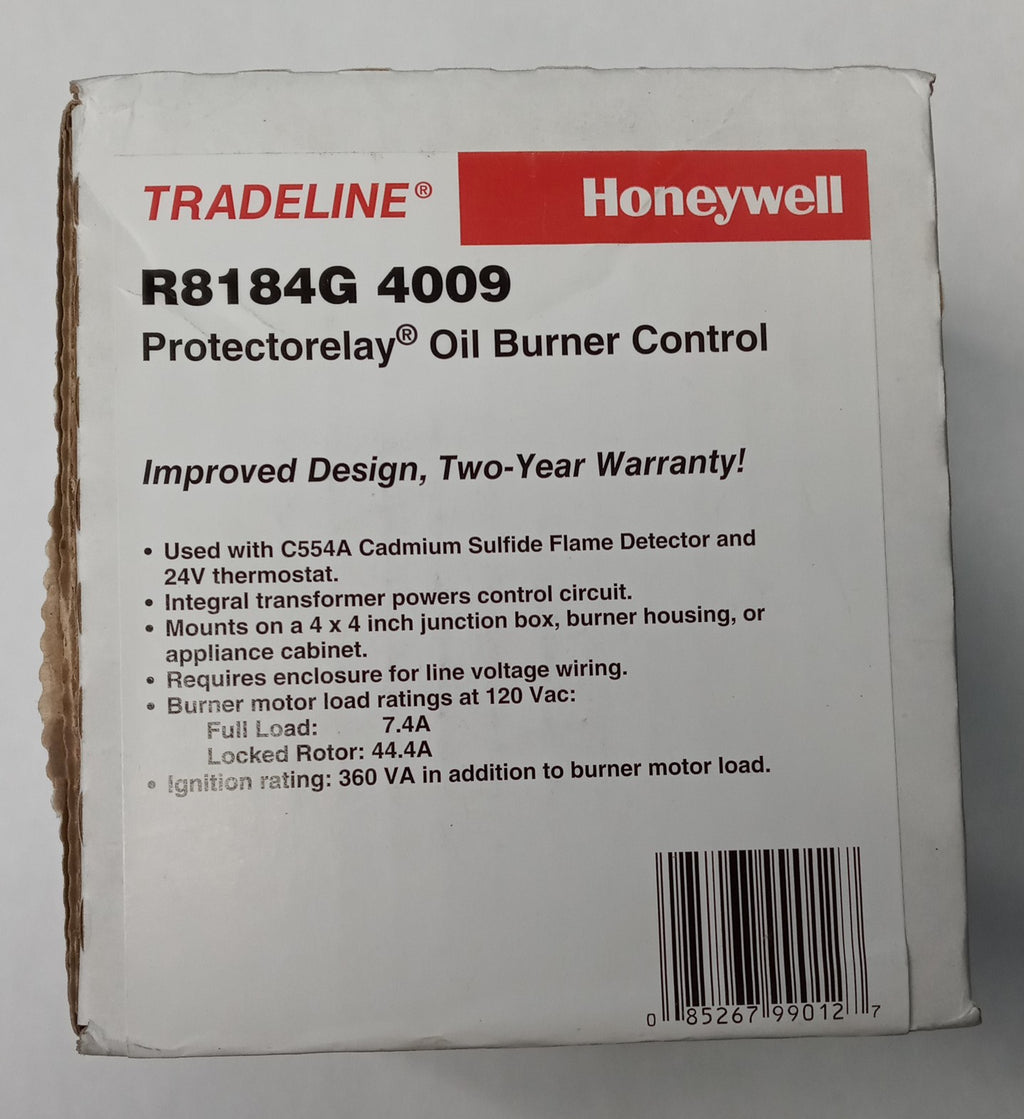

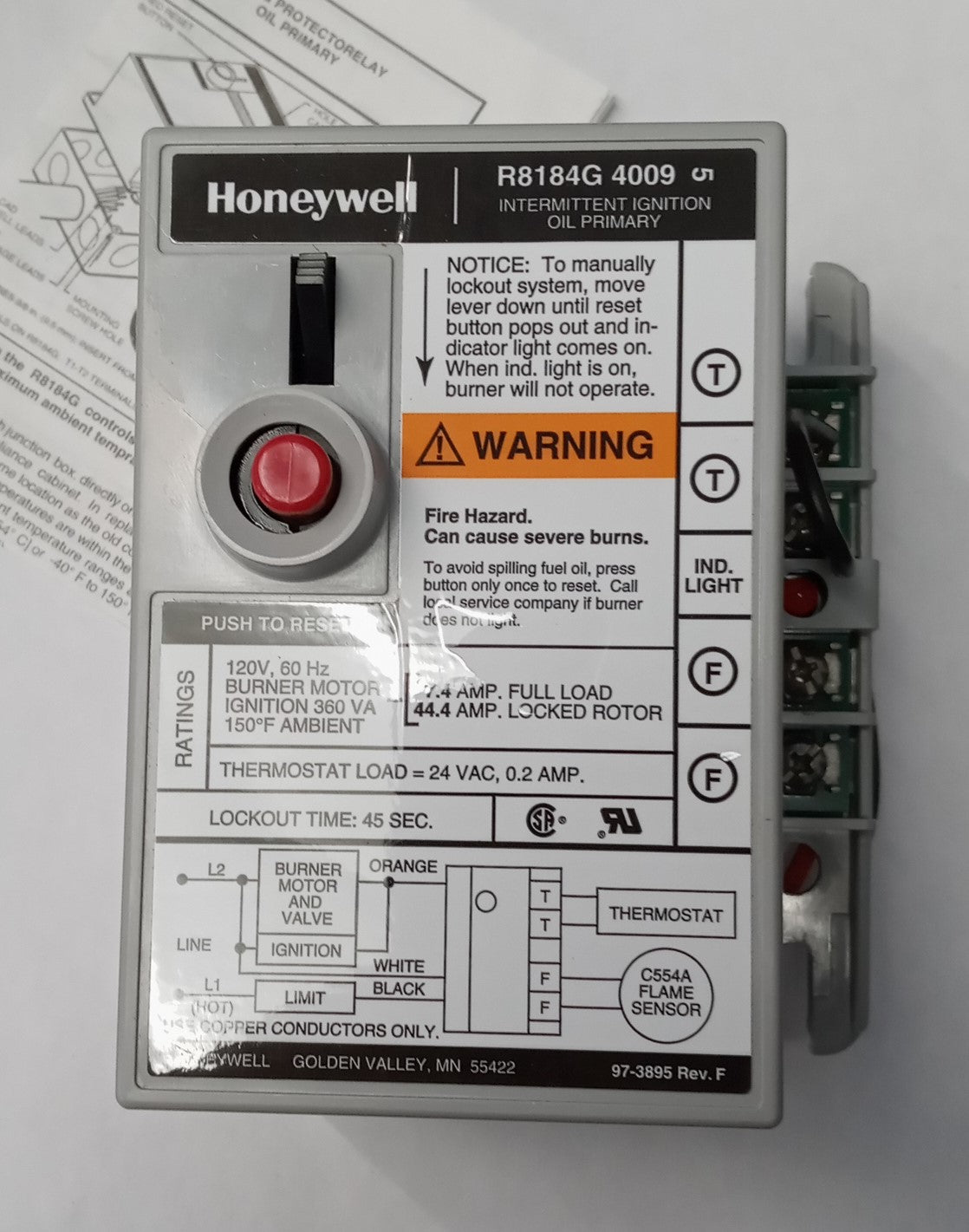

Honeywell Tradeline R8184G 4009 Protectorelay Oil Burning Control
- Used with C554A Flame Detector and 24V thermostat.
- Integral transformer power control circuit.
- Mounts on a 4 x 4 inch junction box, burning housing, or appliance cabinet.
- Requires enclosure for line voltage wiring.
- Burner motor load rating at 120 Vac:
- Full Load: 7.4A
- Locked rotor: 44.4A
- Ignition rating: 360 VA in addition to burner motor load.

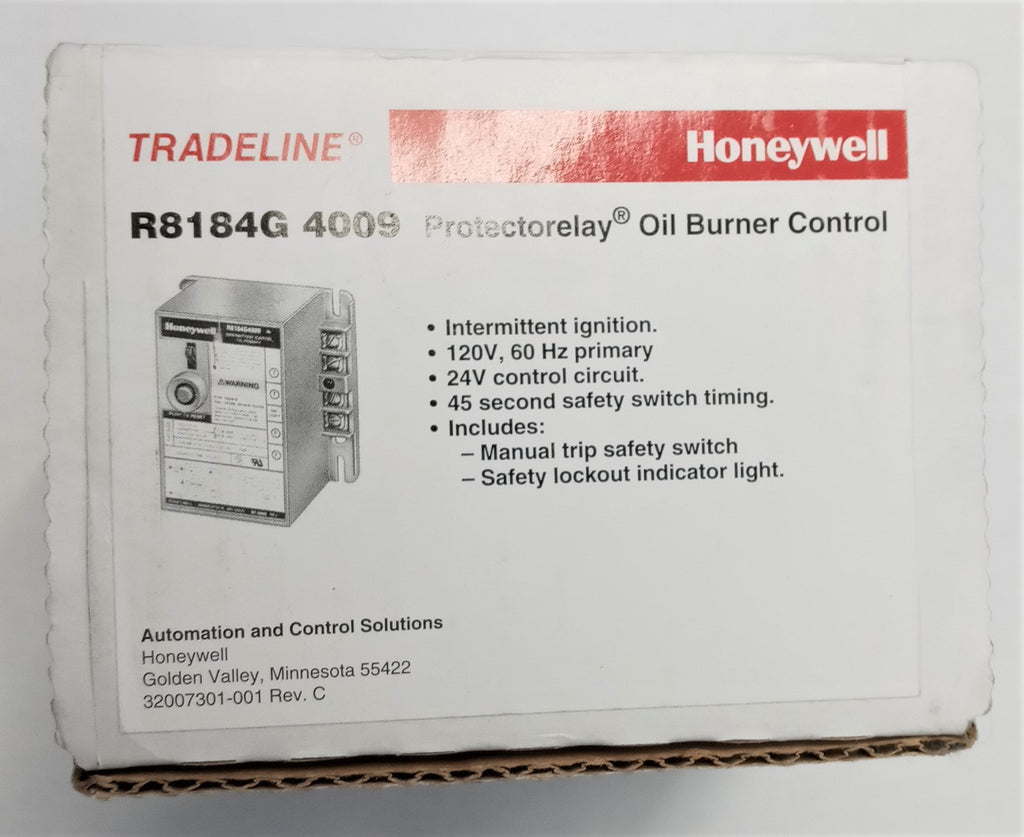

- Intermittent ignition.
- 120V, 60 Hz primary.
- 24V control circuit
- 45 second safety switch timing.
- Includes:
- Manual trip safety switch
- Safety lockout indicator light.
