FEATURES:
• Low input torque is required and can be applied easily by one person using standard 1/2 drive torque wrenches
• Internal planetary gear system provides strength and durability plus an output torque accuracy of +/-5%
• Square drive shears at 3% to 10% of overload torque to protect against expensive internal damage and the square drive can then be easily replaced
• Built in anti-backlash maintains the multipliers input torque allowing the use of ratcheting head torque wrench

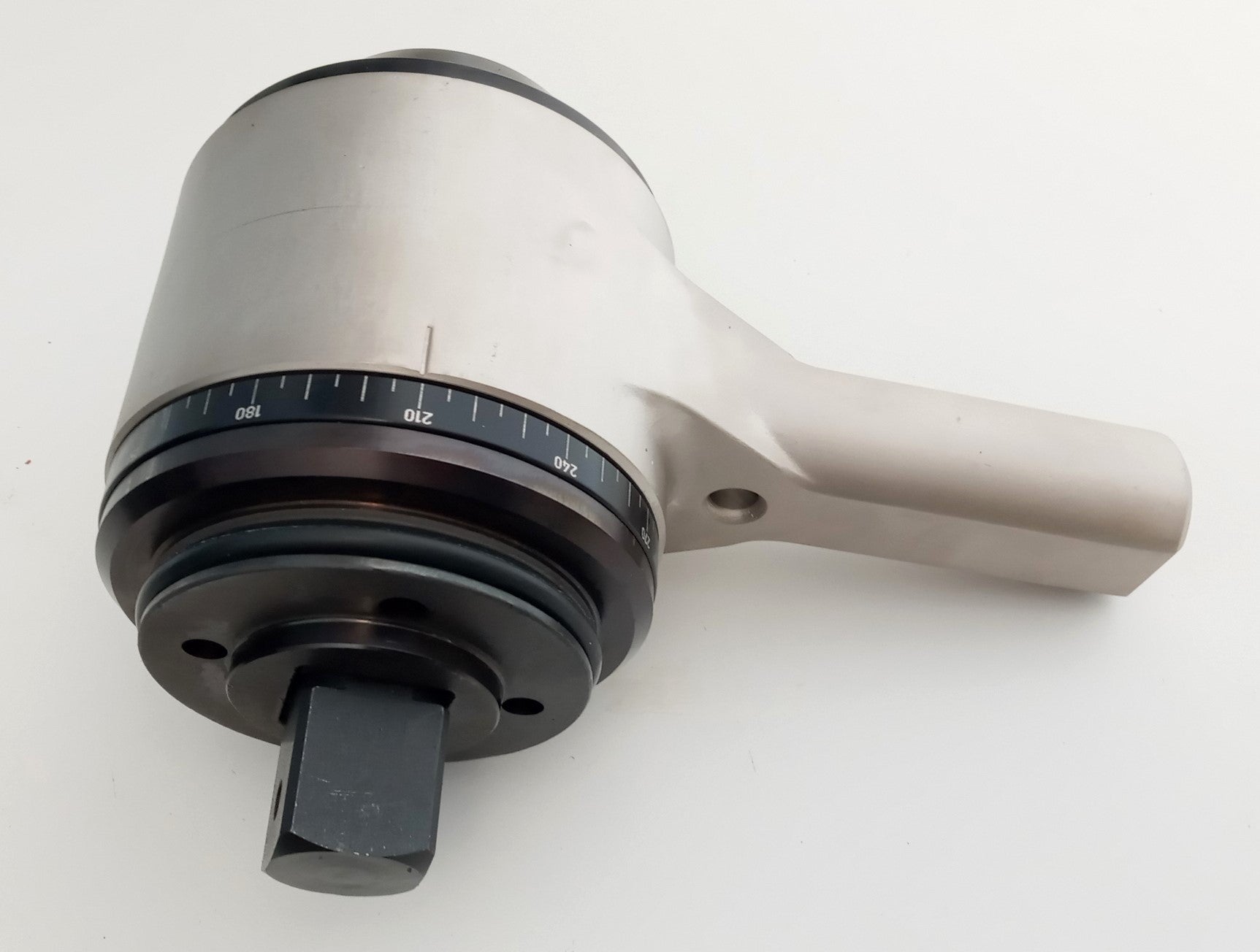

• Built in angle of turn protractor displays the output angle for use on fasteners requiring A specific angle rotation after applied torque

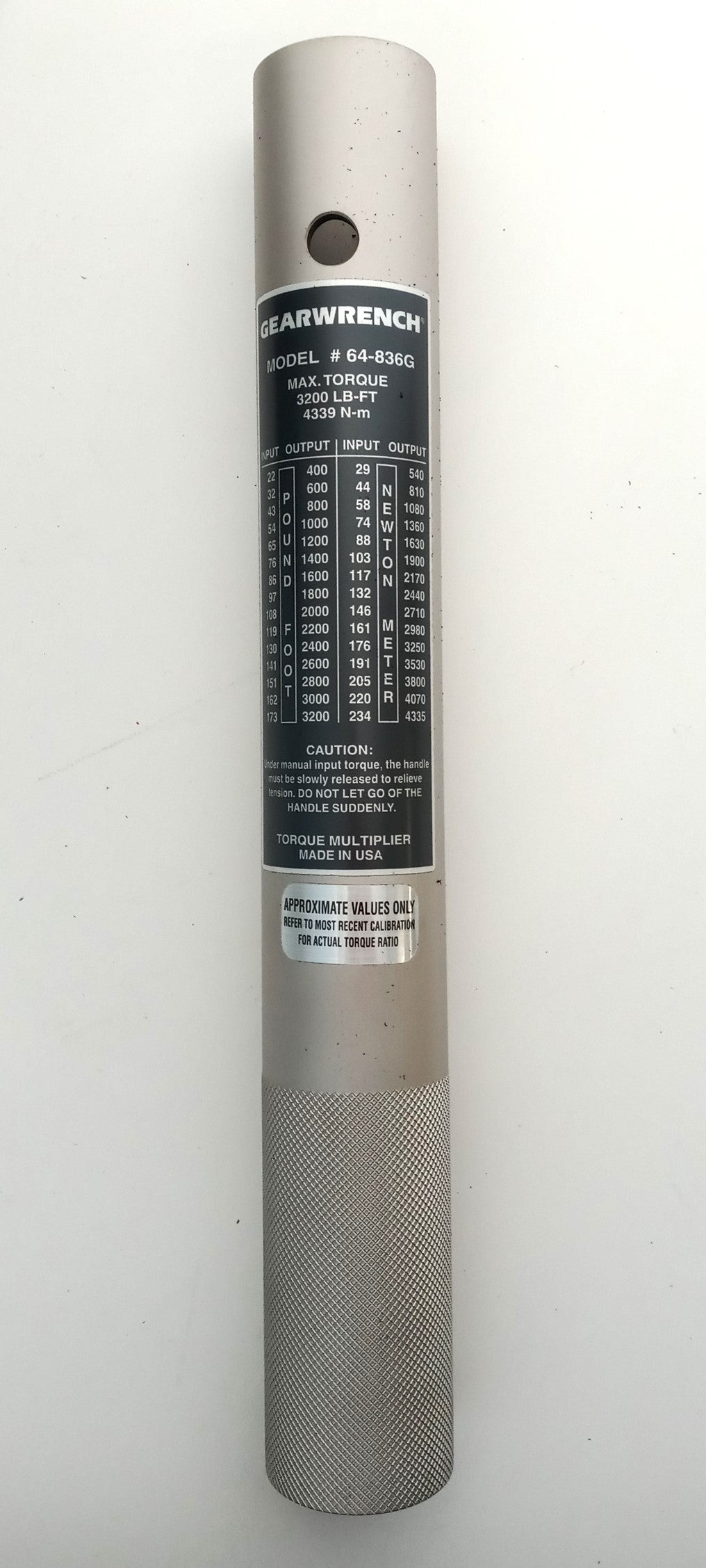

• The torque multiplier with an impact socket on the output square is placed on the fastener to be turned with the reaction bar restrained against some substantial part of the equipment being serviced
• Input and output rotation directions are the same (if input is clockwise, output is clockwise) torque reaction on the reaction arm is in the opposite direction from the input/output force
• Accuracy: +/- 5% CW from 20% to 100% of wrench capability
• Made in the USA
• 1 year limited warranty; calibration accuracy warrantied for 90 days
SPECIFICATIONS:
• Angle of Turm Protractor: Yes
• Case Color: Black
• Drive Type: Square
• Finish: Electroless Nickle
• Gear Ratio: 20.2:1
• Head Length: 6.375 in
• Head Thickness: 6.5 in
• Head Width: 4.031 in

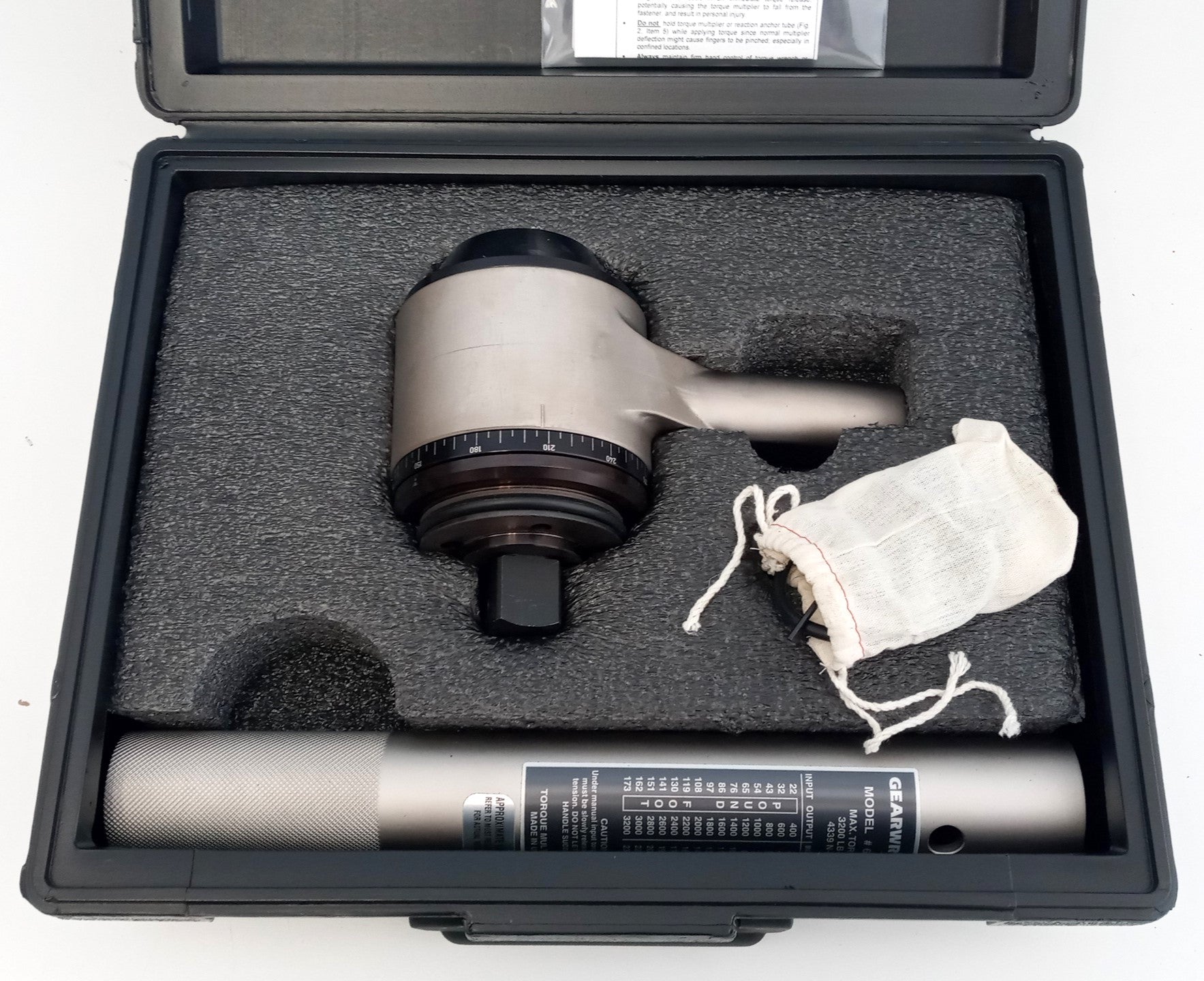

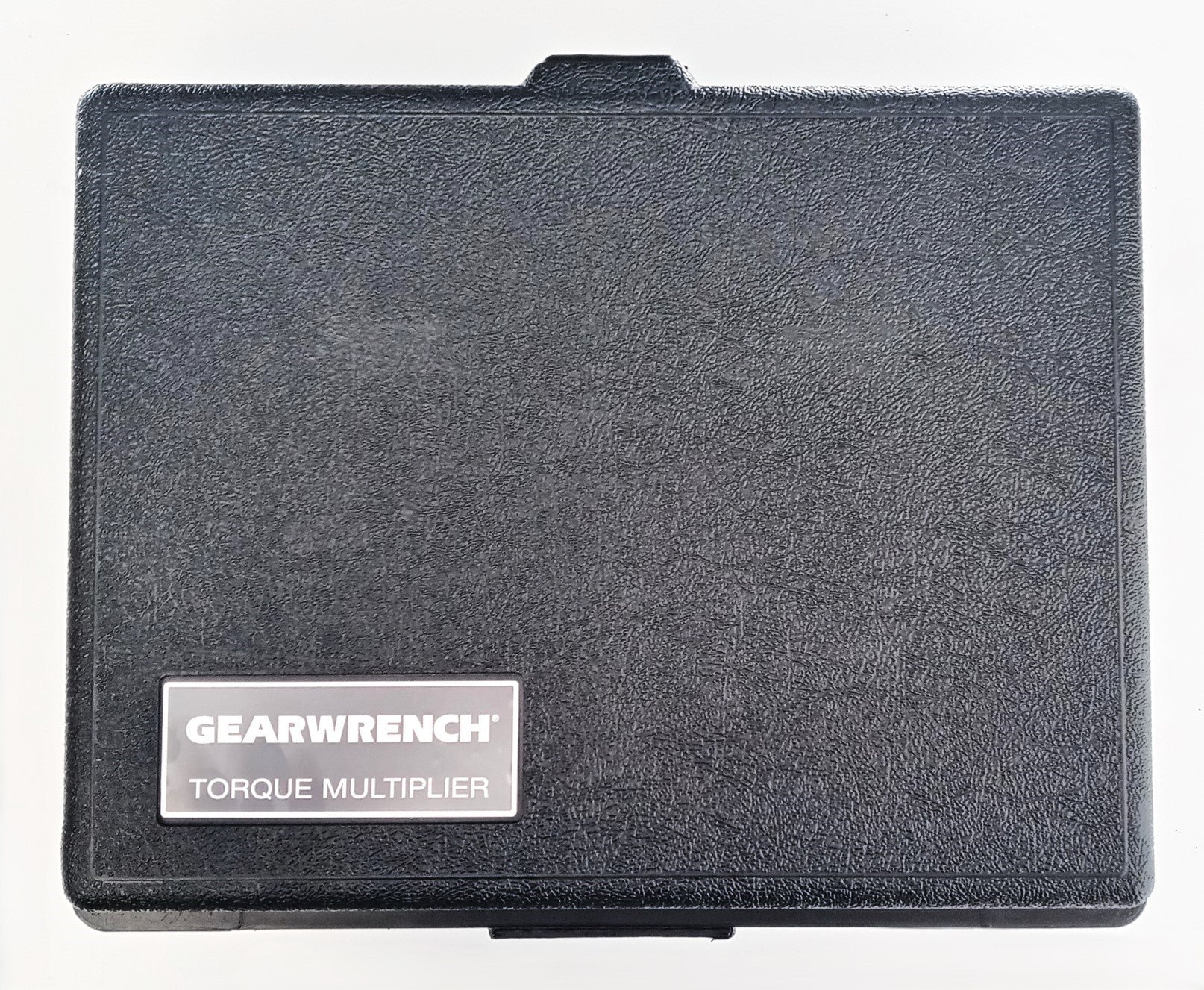

• Included Storage: Blow Mold Case
• Input Drive: 1/2 in
• Material: Steel
• Max Input Torque: 173 ft/lb
• Max Output Torque: 3200 ft/lb
• Output Drive: 1 in
• Repair Kit: 64-852G
• Torque Accuracy (20-100% of Full Range): +/-5% Clockwise
• Torque Multiplier Type: Reaction Bar
• Torque Ratio: 18.5:1
