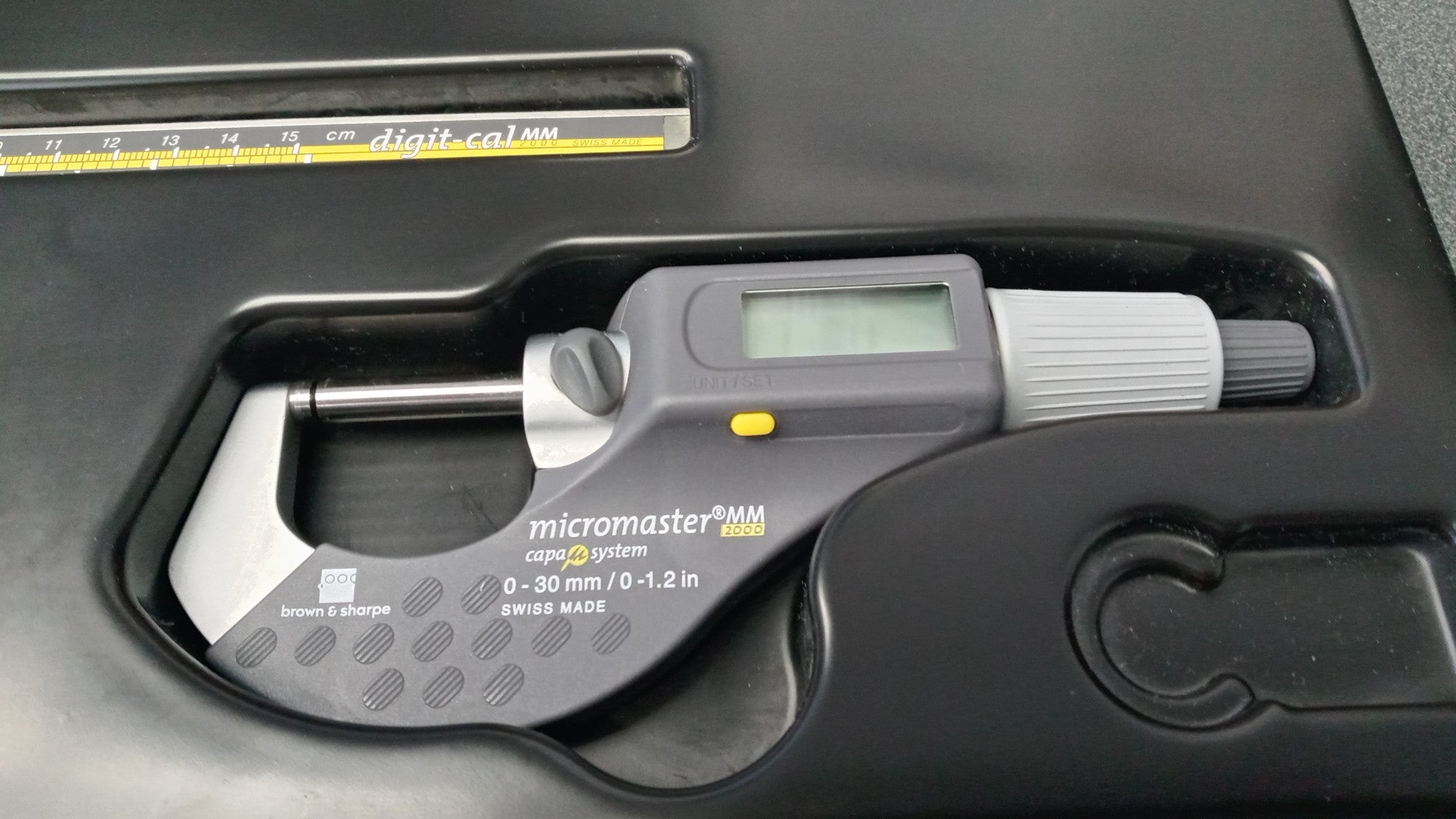

Brown & Sharpe Micro-Master
extended measuring range digital micrometer
The new, ergonomic design allows for easy one-handed operation (but this can be difficult if the hands are small).
Brown & Sharpe Micro-Master digital micrometers conveniently measures beyond 1" (up to 1.2"). This basic model has just one button, so it's a cinch to use by anyone. The models shown on this page do not have SPC output.
High-quality Swiss made with all the features that make Swiss micrometers famous. All feature a waterproof rating of IP40 or IP54. In the table below, the Tesa number is used for international marketing, while the B&S model number is specifically assigned to the Brown & Sharpe branded version sold in the USA. There is no difference other than the slightly lower price of the B&S models.
Specifications:
- Swiss made
- DIN 863 T1 (European Industry Standards)
- 0.00005 inch / 0.001 mm
- mm to inch conversion
- Tungsten carbide tipped anvils
- .25" diameter anvils on 0-1" 1-2" and 2-3" models
- .31" diameter anvils on 3-4" models
- .01 inch thread pitch
- 10 N maximum force
- .27 inch LCD digit height
- floating zero
- display lock
- 3V lithium battery
- 1-2 year battery life (at 2000 hours per year)
- automatic shut-down after 10 minutes. (Display setting is maintained as long as the power supply remains stable.)
- 10°C to 40°C operating temperatures (50°F to 104°F)
- -10°C to 60°C storage temperatures (14°F to 140°F)
- 80% maximum relative humidity tolerated without condensation
- electromagnetic compatibility
- IP40 or IP54 dust and moisture protection

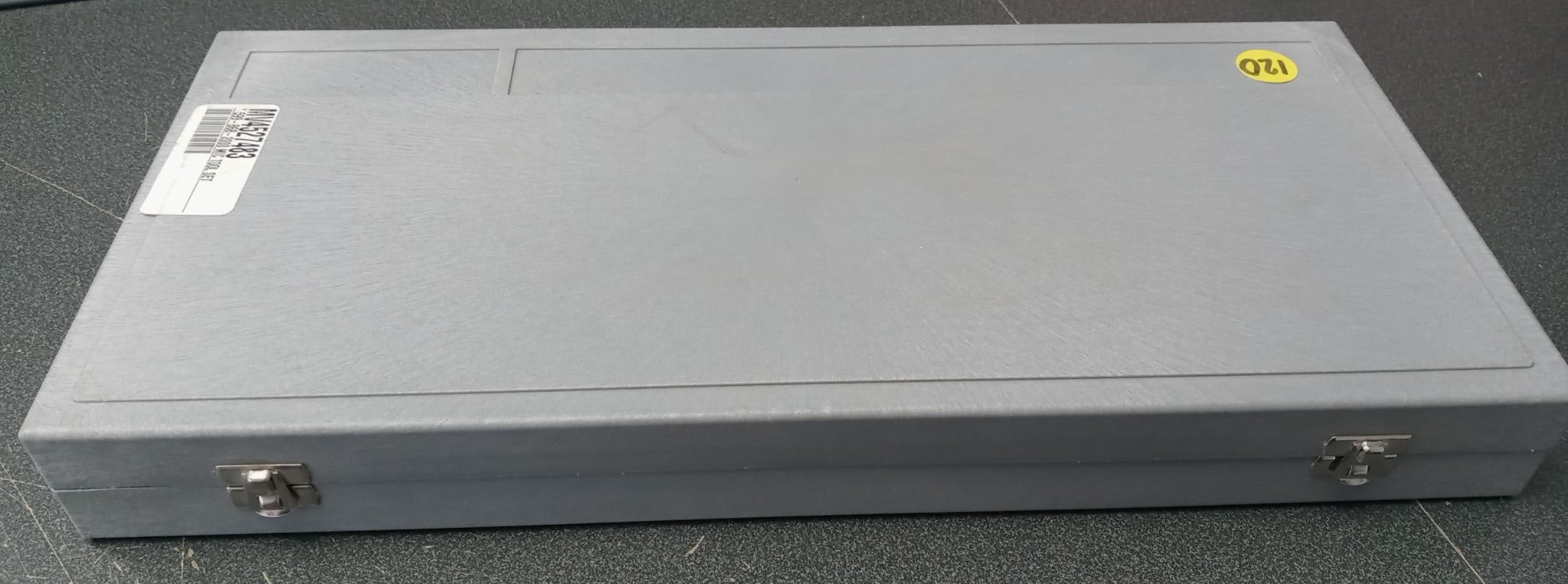

- plastic storage case
